Dentled treatment room M

For a bright treatment room of about 16-20 square meters and a height of 2.4-2.6 meters we recommend the installation of four x 50 Watt Dentled daylight panels. The daylight panels are then installed in a U-shape or light row arrangement in the suspended ceiling surrounding the treatment chair. In this way the desired brightness at the workspace and headrest (2000 Lux) will be achieved. In addition to the U-shape configuration, you can also choose other configurations in consultation with us. – Dimensions: 595×595 & 1195×295 (standard European suspended ceiling dimensions, with the exception of Germany)

DL60 – view LED panels and specifications: Click here

Request a free layout scan: We guess you are researching a light solution for your new or current clinic. If you are interested we will create a free floor plan scan (see example) including a Dentled Full spectrum daylight solution for you to see you how we can help. Just email us at: info@dentallighthouse.eu

DENTLED TREATMENT ROOM M-SKY

For a bright treatment room of about 16-20 square meters and a height of 2.4-2.6 meters we recommend the installation of six 57 Watt Dentled daylight panels. The daylight panels are then installed in a U-shape arrangement in the suspended ceiling surrounding the treatment chair to achieve the desired brightness at the workspace.

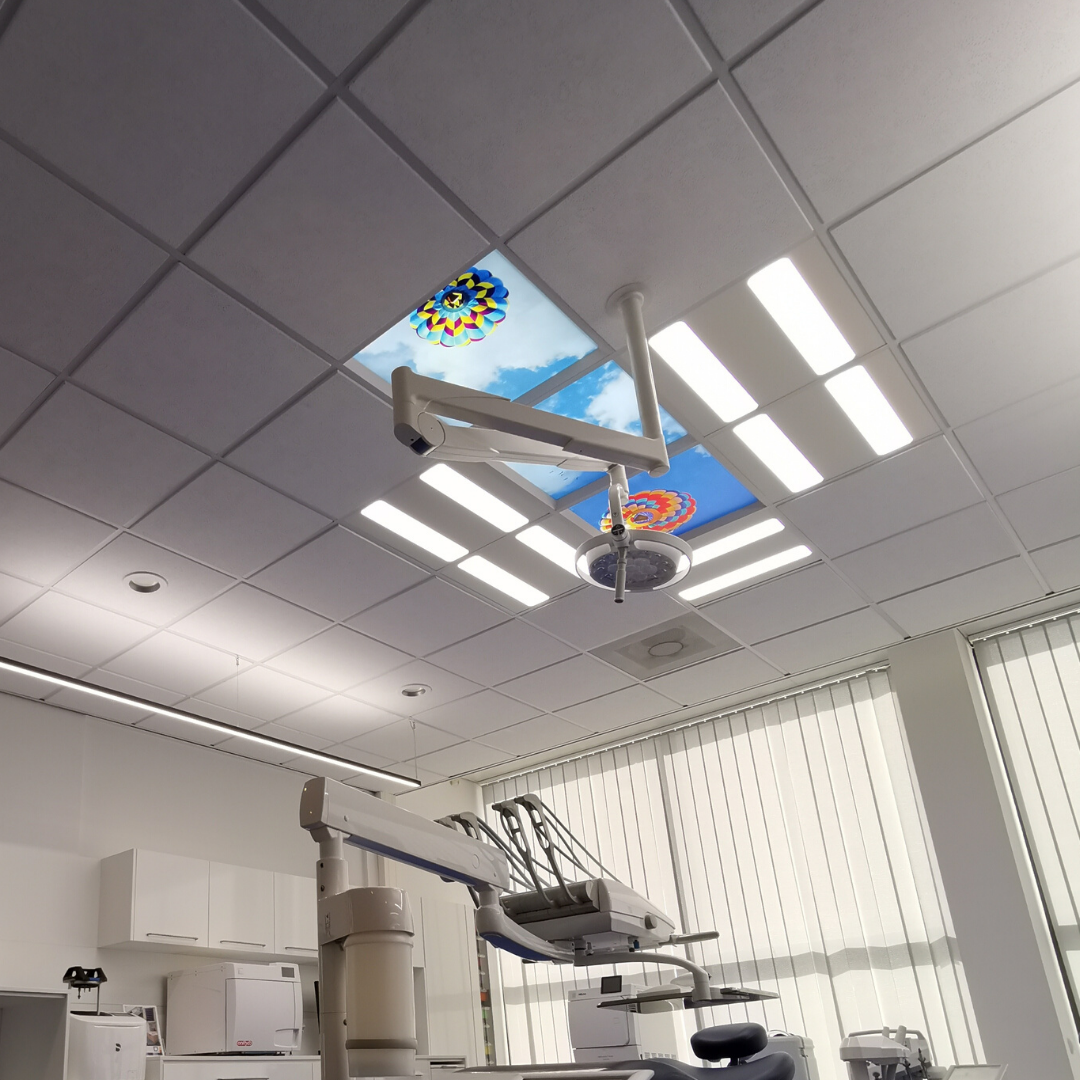

In the photo you can see a Dentled treatment room M setup completed with a beautiful skylight simulation of 4 or 6 panels. These razor-sharp photo-led panels are specially designed for dental workplaces:

  • The low Wattage of 12 Watt prevents blue light in the treatment room
  • standard equipped with flicker-free drivers
  • a special anti-reflection coating
  • properties that cause less fatigue to your eyes

The photo-led skylight simulation is a wonderful experience and the perfect distraction for children and anxiety patients.

View LED panels and specifications: click here

Request a free layout scan: We guess you are researching a light solution for your new or current clinic. If you are interested we will create a free floor plan scan (see example) including a Dentled Full spectrum daylight solution for you to see you how we can help. Just email us at: info@dentallighthouse.eu

DENTLED TREATMENT ROOM PVU

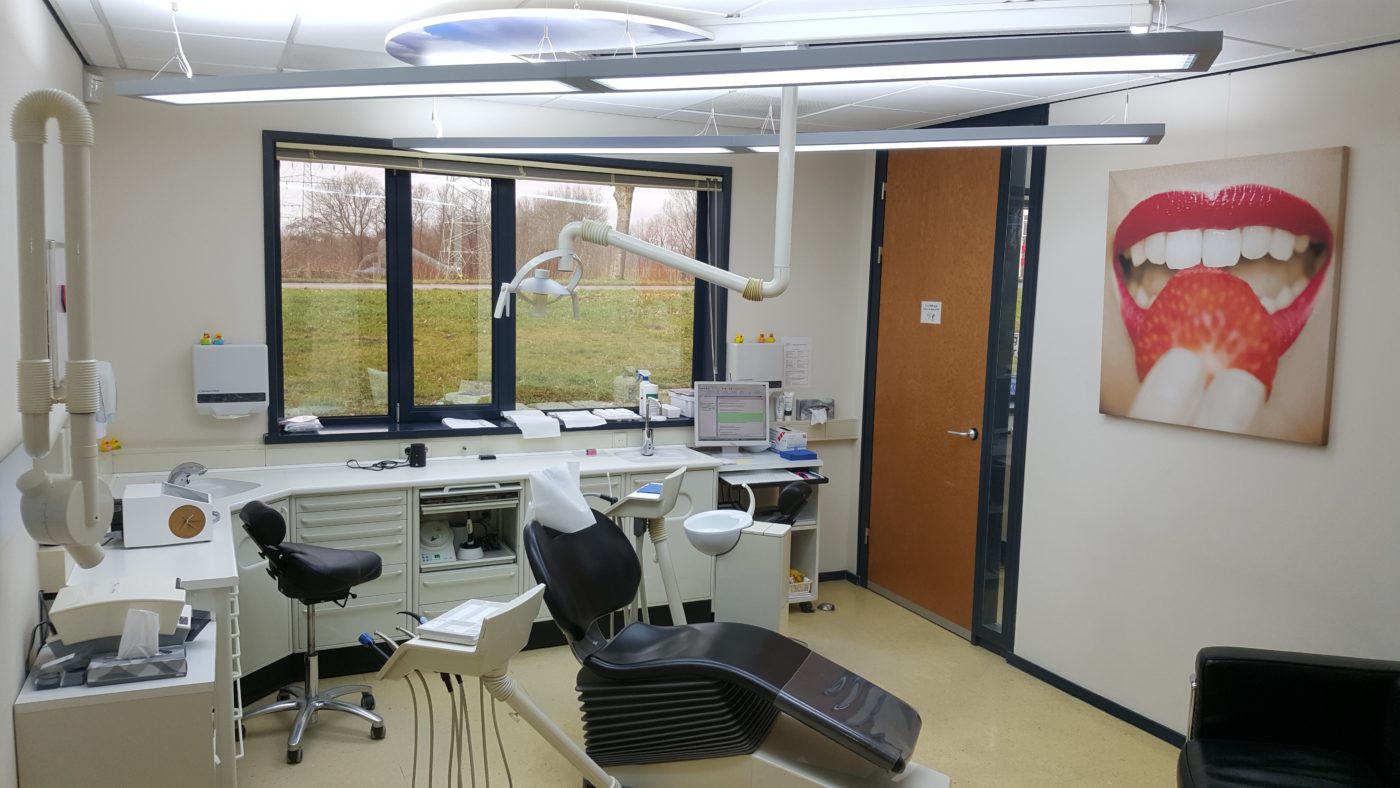

For a bright treatment room of about 16-20 square meters and a height of 2.4-2.6 meters a U-shape PVU Dentled direct/indirect luminaire will guarantee the desired amount of LUX at the workplace. The direct and indirect light provides an ideal light distribution through reflections from walls and ceiling.

For treatment rooms with higher ceilings and/or darker walls and floor it is possible to increase the output of the PVU U-shape and thereby achieve the necessary 2000 LUX at the workplace.

  • Standard equipped with dimmer (no batteries required)
  • Automatic annual adjustment of output-loss compensation, ensuring the brightness not to decrease

View PVU and specifications: click here

Request a free layout scan: We guess you are researching a light solution for your new or current clinic. If you are interested we will create a free floor plan scan (see example) including a Dentled Full spectrum daylight solution for you to see you how we can help. Just email us at: info@dentallighthouse.eu

White Line Full Spectrum daylight LED panels

Dentled treatment room White Line

For a small treatment room of about 16-20 square meters and a height of 2.4-2.6 meters we recommend the installation of 4 to 6 white line panels. The full spectrum LED daylight panels are then installed in a U-shape or light row arrangement in the suspended ceiling surrounding the treatment chair. In this way the desired brightness at the workspace and headrest (2000 Lux) will be achieved. In addition to the U-shape configuration, you can also choose other configurations in consultation with us. –

white line – Full spectrum daylight LED panels

Request a free layout scan: We guess you are researching a light solution for your new or current clinic. If you are interested we will create a free floor plan scan (see example) including a Dentled Full spectrum daylight solution for you to see you how we can help. Just email us at: info@dentallighthouse.eu

DENTLED TREATMENT ROOM U-SKY

For a bright treatment room of about 16-20 square meters and a height of 2.4-2.6 meters a U-shape PVU Dentled direct/indirect luminaire will guarantee the desired amount of LUX at the workplace. The direct and indirect light provides an ideal light distribution through reflections from walls and ceiling.

For treatment rooms with higher ceilings and/or darker walls and floor it is possible to increase the output of the PVU U-shape and thereby achieve the necessary 2000 LUX at the workplace.

  • Standard equipped with dimmer (no batteries required)
  • Besides the standard Ral colour 9006 also available in a Ral colour of your choice, optionally with a structure
  • Automatic annual adjustment of output-loss compensation, ensuring the brightness not to decrease

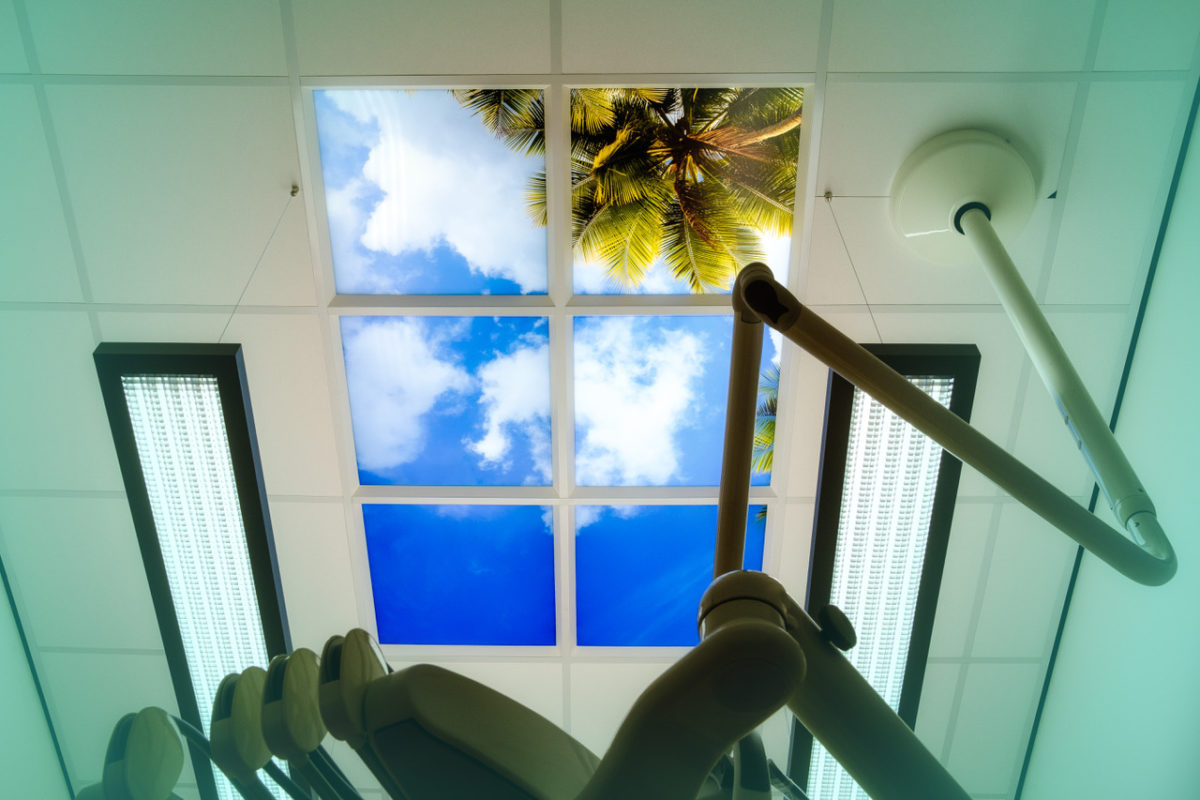

In the picture you see the treatment room U setup completed with a beautiful skylight simulation of 4 or 6 panels. These razor-sharp photo-led panels are specially designed for dental workplace:

  • The low Wattage of 12 Watt prevents blue light in the treatment room
  • standard equipped with flicker-free drivers
  • a special anti-reflection coating
  • properties that cause less fatigue to your eyes

The photo-led skylight simulation is a wonderful experience and the perfect distraction for children and anxiety patients.

View LED panels and specifications: click here



DENTLED TREATMENT ROOM L

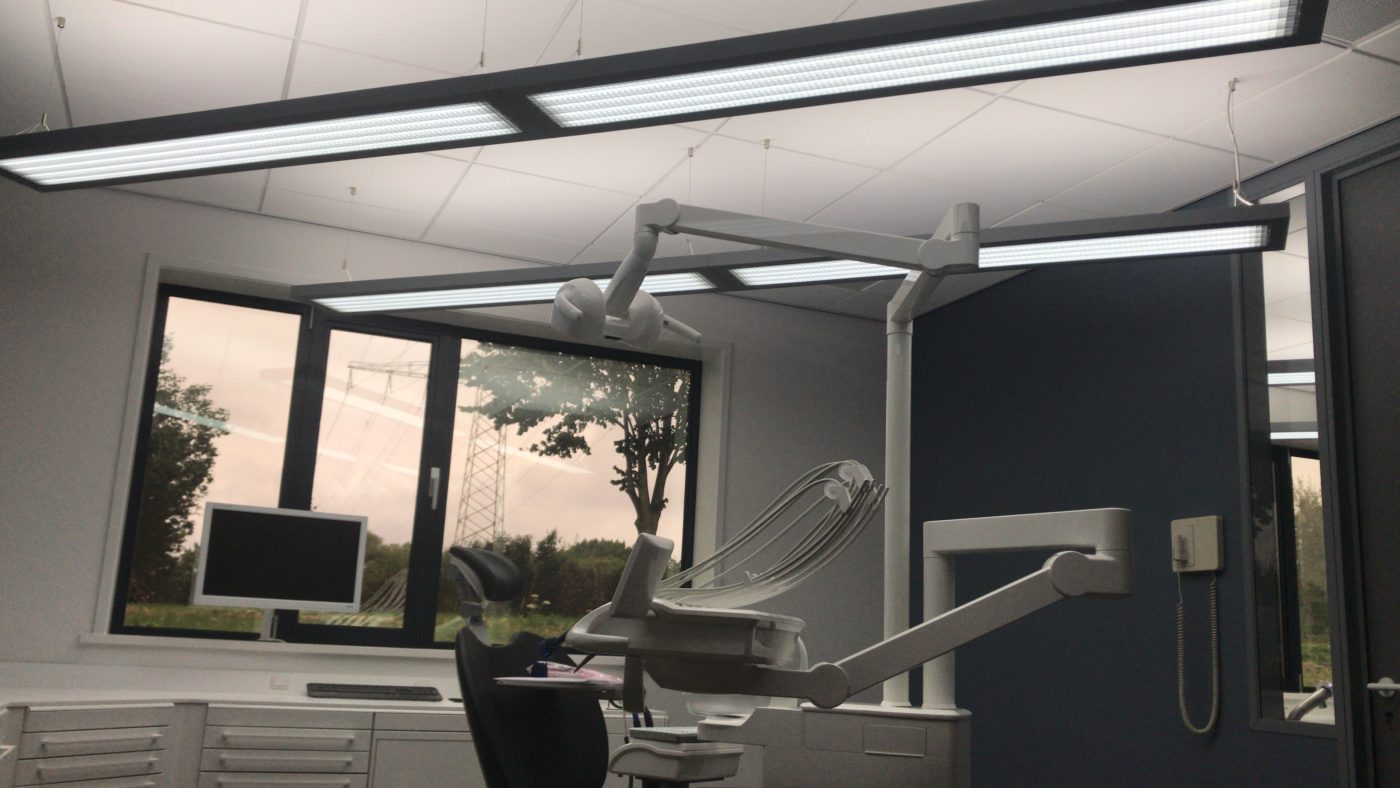

For a bright treatment room of about 20-25 square meters and a height of 2.4-3.5 meters two light rows of PVL Dentled direct/indirect luminaires will guarantee the desired illumination (LUX) at the workplace. The direct and indirect light provides an ideal light distribution through reflections from walls and ceiling.

For treatment rooms with higher ceilings and/or darker walls and floor it is possible to increase the output of the PVU U-shape and thereby achieve the necessary 2000 LUX at the workplace.

  • Standard equipped with dimmer (no batteries required)
  • Besides the standard colour Ral 9006 also available in a Ral colour of your choice, optionally with structure
  • Automatic annual adjustment of output-loss compensation, ensuring the brightness not to decrease

View LED panels and specifications: click here



DENTLED TREATMENT ROOM B

For a bright treatment room of about 10-12 square meters and a height of 2.4-2.6 meters, a mono BRD 3×50 Watt Dentled direct/indirect fixture will achieve the necessary luminance at the workplace (Lux). The direct and indirect light provides an ideal light distribution through reflections from walls and ceiling.

For a uniform light distribution in bigger treatment rooms we advise the installation of one or more Dentled panels (50 Watt fitted or mounted).

Besides the standard colour Ral 9006 also available in a Ral colour of your choice, optionally with structure.

Beware that when you decide on workspace lighting for (existing) treatment rooms, it is important to take into account the position of any ceiling-mounted surgical light and the position of the suspended ceiling grid in relation to the treatment chair. The direct/indirect lighting is usually suspended at 220 cm from the floor. It goes without saying that we take into account the height of the X-ray tube arm and the reach of the surgical light when installing the fixtures.

View LED panels and specifications: click here



Take a look at our other solutions

In addition to the applications above, we are help to help if your practice space has different dimensions or has specific requirements. Please contact us and we will be happy to assist you.
